If you’ve ever wondered how your car turns so smoothly when you move the steering wheel, the steering knuckle plays a significant role in making that happen. This component connects the wheels, suspension, and steering to ensure the car runs smoothly.
But what is a steering knuckle exactly? How does it function, and why does it matter? This guide will give you a detailed overview of the steering knuckle.

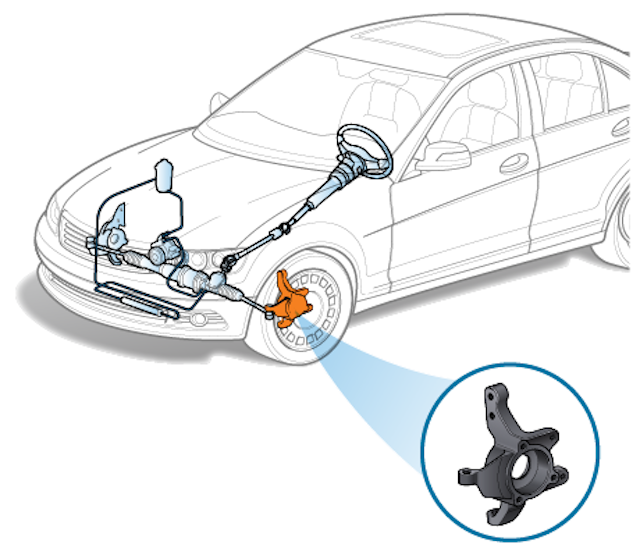

What is a Steering Knuckle
The steering knuckle is an essential part of a vehicle’s suspension and steering system. It connects the wheels, suspension components, and steering mechanism and usually sits in the front suspension. It helps guide wheel movement when the driver turns the steering wheel.
Function
- Supports the wheel hub and bearings, allowing the wheel to rotate smoothly
- Connects the suspension and steering system, transmitting steering force to the wheels
- Holds the brake components, acting as a mounting point for brake calipers and rotors
- Affects steering precision, impacting how well the car responds to input

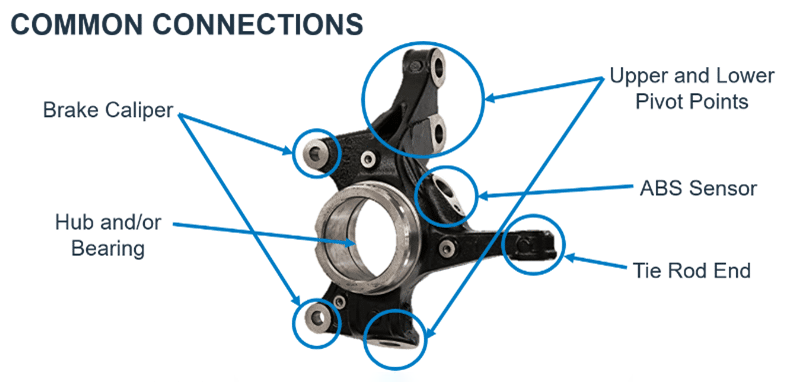

Steering Knuckle Components
Main Components:
- Hub Mounting Area – Where the wheel hub and bearings are attached
- Steering Arm – Connects to the tie rod, which controls wheel direction
- Ball Joint Connections – Links to the control arms for up and down movement
- Suspension Mounting Points – Where it connects to the control arms or struts
- Brake Caliper Mounting Bracket – Secures the brake caliper and rotor
Types of Steering Knuckles
Classified by Suspension Type
MacPherson Strut Type
- Common in sedans and compact cars
- I directly connected to the shock absorbing strut, reducing weight and complexity
Double Wishbone Type
- Found in performance cars and SUVs
- Uses upper and lower control arms for better handling
Classified by Material
Cast Iron:
- Traditional, durable but heavy
- Common in commercial and older vehicles
Aluminum:
- Lightweight, often used in sports cars and electric vehicles
- It will reduce weight and improve fuel efficiency and performance
Forged Steel:
- High-strength material for trucks and off-road vehicles
- Withstands heavy loads and harsh environments

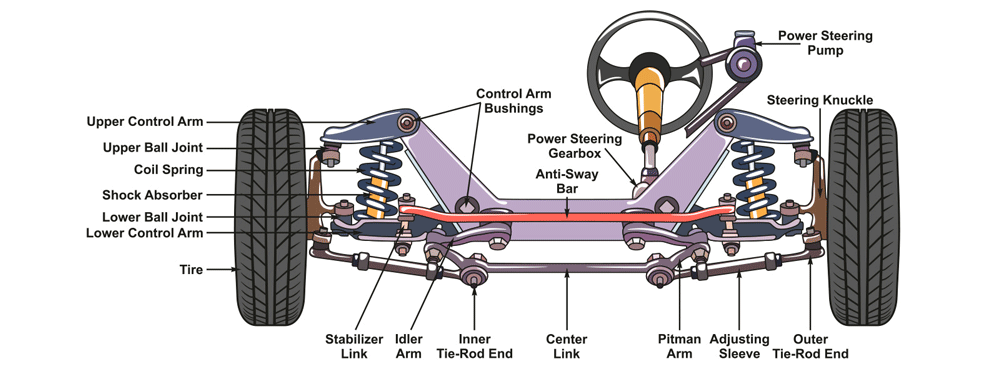

Steering Knuckle and the Steering System
EPS (Electric Power Steering) and Steering Knuckle Requirements
- Traditional Hydraulic Power Steering (HPS) – Uses a hydraulic pump, making it design less critical
- Electric Power Steering (EPS) – Uses an electric motor, requiring a lighter and more precise steering knuckle
- Many modern cars and EVs now use aluminum or composite steering knuckles to enhance efficiency and performance
The Steering Knuckle’s Relationship with Tie Rods and Ball Joints
- Tie Rod (Steering Linkage) – Connects the steering rack to the knuckle, directly affecting the turning angle
- Ball Joints – Allow the knuckle to move with the suspension, ensuring smooth motion
- Worn or loose ball joints and tie rods can cause steering instability, wheel misalignment, and safety risks

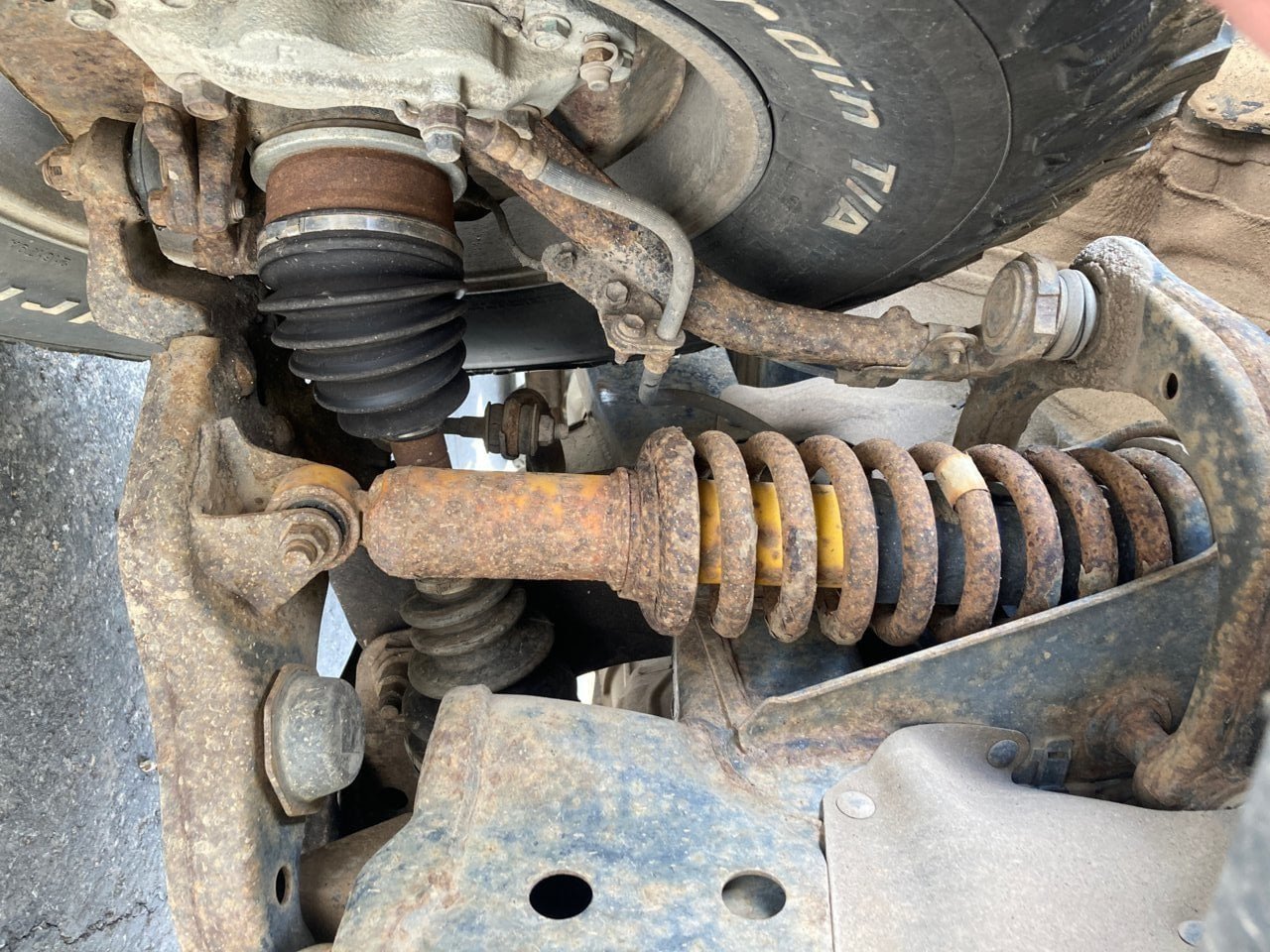

Common Issues and Maintenance Tips
How to Inspect and Replace it
- Visual Inspection – Check for cracks, rust, or deformations
- Steering Response – If steering feels loose or imprecise, inspect ball joints and tie rods
- Wheel Alignment – If misalignment occurs frequently, the knuckle might be the issue
Replacement Tips
- Always torque bolts to manufacturer specifications
- Use original spare parts or those with quality aftermarket parts to enhance durability, such as GDST.
Conclusion
It is critical to a vehicle’s steering and suspension system, directly affecting handling, safety, and driving comfort. Understanding its types, functions, and maintenance can help you diagnose steering issues early and keep your vehicle running smoothly.
