In the steering knuckle business, knowing the different types isn’t just technical knowledge—it’s the key to earning your customers’ trust. If you can explain clearly, you instantly show you’re a real professional. Let’s break it down simply and clearly.
There are mainly two types of steering knuckles: Conventional Steering Knuckle and MacPherson Strut Knuckle. Conventional types are found in older vehicles with solid axle setups, while MacPherson strut knuckles are used in modern cars with strut-based suspension systems. Each has its specific structure and application.

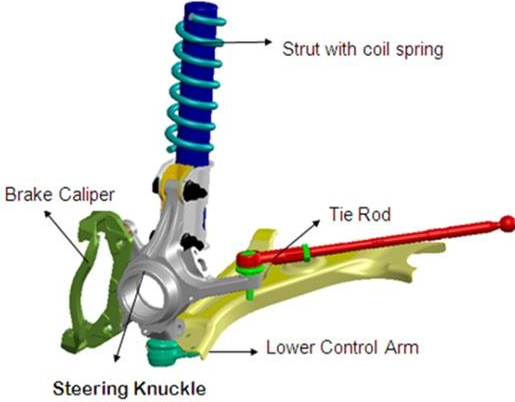

What Is a Steering Knuckle?
Before we jump into types, it’s important to know what a steering knuckle does.
The function of the steering knuckle is to connect the wheels to the vehicle’s suspension and steering components. It acts as a pivot point that allows your wheels to turn left or right. In short, no steering knuckle, no steering at all.
It also connects with other parts like the steering knuckle ball joint, tie rods, and in many cases, the spindle/knuckle assembly front. All together, they make the front suspension work smoothly.
Main Types of Steering Knuckle

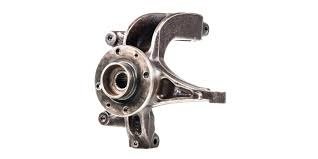

Conventional Steering Knuckle
The Conventional Steering Knuckle is typically used in older vehicles or vehicles with a solid axle.
Here’s what makes it special:
- It includes a spindle onto which the wheel hub and bearings are mounted.
- It provides the mounting points for brake calipers and suspension arms.
- It’s usually heavier and built for tough, rugged conditions.
Conventional steering knuckles are most common in trucks and off-road vehicles that prioritize durability over weight savings.
If you look at a steering knuckle diagram for a solid axle truck, you’ll notice the robust design focusing on strength.

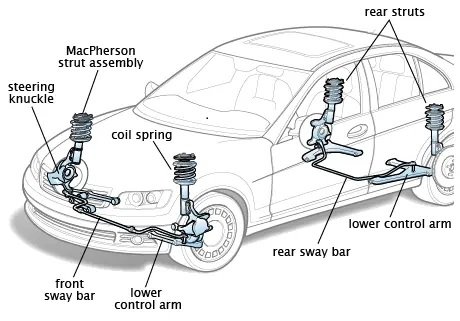

MacPherson Strut Knuckle
The MacPherson Strut Knuckle is the modern star.
It’s mainly used in cars with MacPherson suspension systems.
Key points about it:
- No separate spindle; instead, the strut mounts directly to the knuckle.
- Simpler, lighter, and more compact.
- Offers better ride comfort and handling for passenger cars.
This design supports the wheel hub, brake assembly, and attaches the strut at the top.
A good steering knuckle diagram for a sedan will show you the clean, simple layout that makes repairs easier, too.
Other Variations You Might Encounter
Steering Knuckle with Hub vs Steering Knuckle with Spindle
Some steering knuckles are designed with an integrated hub, while others come with a spindle.
- Hub Type: Hub is built-in, making assembly easier but sometimes more expensive to replace.
- Spindle Type: Requires mounting a separate hub assembly, offering flexibility but adding steps during service.
Knowing this can help you guide customers when they ask about Steering Knuckle and hub Assembly options.
How to Identify Different Types of Steering Knuckles
Identifying different types of steering knuckles quickly and accurately is an important skill for anyone in the business. Here are a few simple but effective methods:
Look at the Suspension Design:
- If the knuckle has a spindle sticking out for mounting the wheel bearings and hub, it’s likely a Conventional Steering Knuckle.
- If the knuckle has a flat surface where a suspension strut bolts directly, it’s a MacPherson Strut Knuckle.
Check for Drive Shaft Openings:
- In front-wheel drive (FWD) and all-wheel drive (AWD) vehicles, the steering knuckle usually has a hole for the CV axle shaft to pass through.
- In rear-wheel drive (RWD) vehicles, the front steering knuckle typically has no drive shaft opening.
Look at the Overall Shape and Size:
- Conventional knuckles are generally bulkier and heavier, built to withstand off-road or heavy-duty use.
- MacPherson knuckles tend to be lighter and more compact for better fuel economy and space efficiency.
Check Part Numbers and OEM Information:
- Most steering knuckles have a stamped or engraved part number.
- Cross-referencing the part number with manufacturer catalogs can quickly tell you the type and fitment.
Observe the Connection Points:
- Conventional types usually have additional mounting points for kingpins or ball joints.
- MacPherson types often have simplified attachment points because the strut directly supports the suspension load.
Learning to spot these differences at a glance will save time and boost your professional credibility when discussing options with customers. Mastering the types of steering knuckles helps you recommend better solutions and build trust with your customers. Let’s keep it professional, smart, and always one step ahead.
