    What Is A Tie Rod End On Your Car?

    tie rod end

    A tie rod end is a crucial component of a vehicle’s steering system. It connects the steering linkage to the steering knuckle, which is a part of the wheel assembly. This connection allows the steering motion generated by the driver through the steering wheel to be transferred to the wheels, resulting in the vehicle’s movement in the desired direction.

    Tie rod ends are typically ball-and-socket joints that provide flexibility in movement while maintaining a strong connection. They are designed to pivot as the wheels turn, allowing the wheels to move smoothly and respond to steering input. Tie rod ends are essential for maintaining proper alignment and controlling the movement of the wheels, ensuring that the vehicle tracks straight and handles predictably.

    What Are The Types of A Tie Rod End?

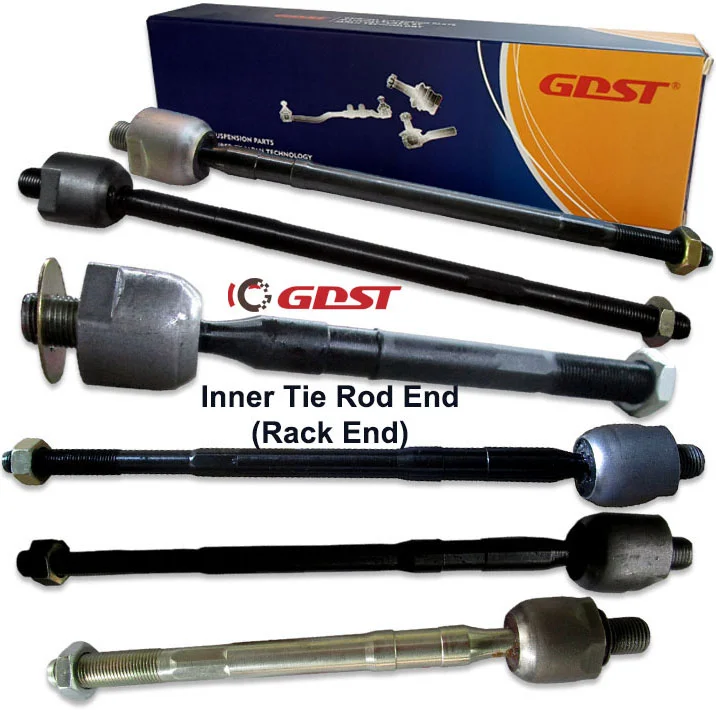

    inner tie rod end

    Inner Tie Rod Ends (Rack End):

    Inner tie rod ends are components located within the steering system of a vehicle. They are connected to the steering rack and are responsible for transmitting the steering input from the driver (via the steering wheel) to the outer tie rod ends. Inner tie rod ends are not directly visible as they are typically located within the steering rack assembly and are often protected by rubber boots. These boots prevent dirt, moisture, and debris from entering and damaging the inner tie rod ends. The inner tie rod ends play a crucial role in converting the rotational movement of the steering rack into a linear movement that controls the alignment of the wheels.

    outer tie rod end

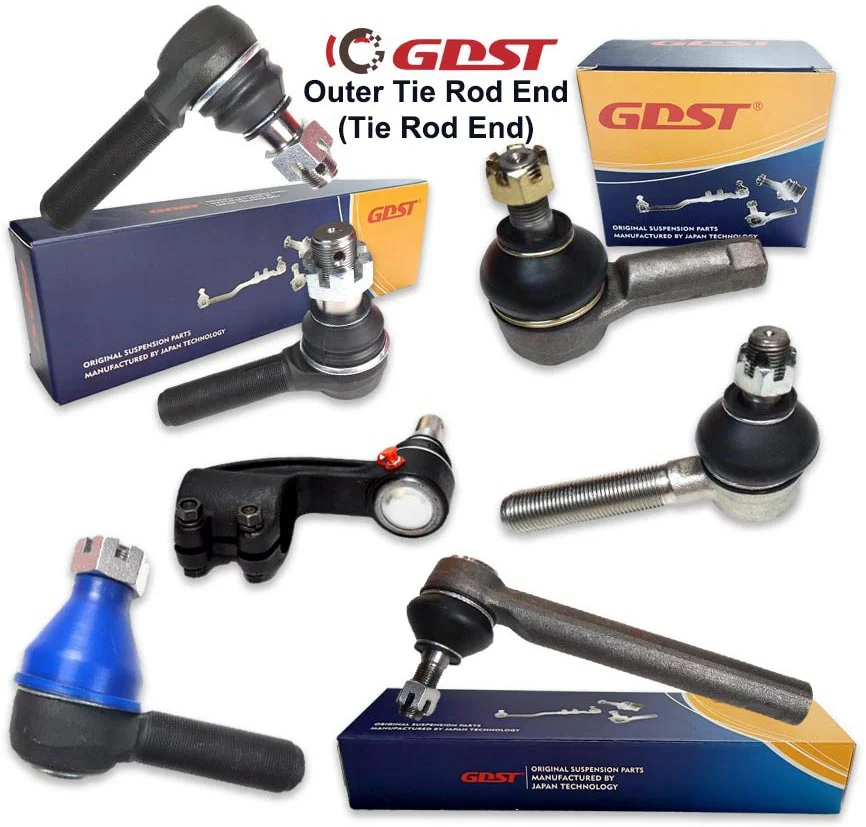

    Outer Tie Rod Ends (Tie Rod End):

    Outer tie rod ends are components that are more visible and are connected to the steering knuckle, which is a part of the wheel assembly. These tie rod ends are responsible for linking the steering system to the wheels. The outer tie rod ends are attached to the steering knuckle on one end and to the inner tie rod ends on the other end through a ball joint or other connecting mechanism. They play a significant role in determining the alignment of the wheels and ensuring proper steering control. Because they are located at the outer edge of the vehicle, outer tie rod ends are more exposed to the elements and can be subject to wear and tear.

    In summary, the main differences between inner and outer tie rod end lie in their locations and functions within the vehicle’s steering system. Inner tie rod ends connect to the steering rack and transmit steering input, while outer tie rod ends connect to the steering knuckle and influence wheel alignment and steering control. Both components are essential for the overall operation and safety of a vehicle’s steering system.

    Parts of A Tie Rod End

    The inner tie rod end consists of several key components that work together to facilitate the connection between the steering system and the wheels. These components allow for the transmission of steering input from the driver to the outer tie rod ends and, ultimately, to the wheels. The main parts of an inner tie rod end include:

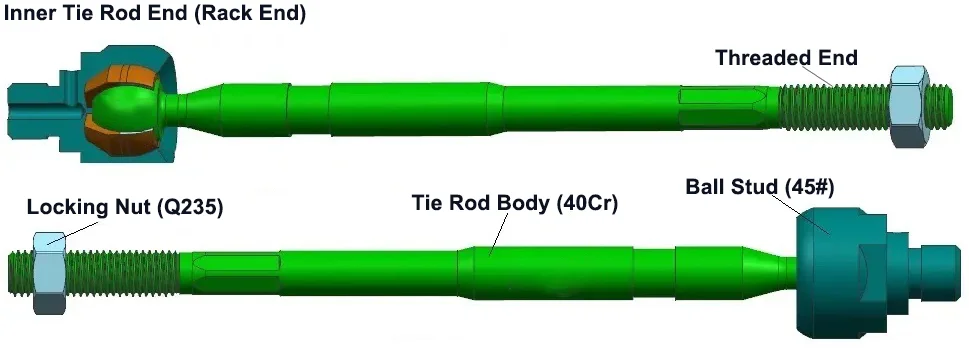

    rack end
    • Tie Rod Body: The main body of the inner tie rod is a cylindrical metal rod that extends from the steering rack. It is threaded on the outer surface to provide a connection point for other components.
    • Threaded End: The outer end of the tie rod body is threaded, allowing it to be connected to the outer tie rod end through a threaded connection.
    • Ball Stud: At the end of the threaded portion, there is a ball stud or ball joint. This component has a spherical shape that allows for a wide range of movement and articulation. The ball stud is typically encased in a protective boot to keep dirt and debris out and retain lubrication.
    • Locking Nut: This nut is threaded onto the end of the tie rod body and is tightened against the outer tie rod end to lock it in place once the alignment is set.

    The outer tie rod end is a critical component of a vehicle’s steering system that connects the steering linkage to the steering knuckle, influencing wheel alignment and steering control. It consists of several components that work together to facilitate the movement and alignment of the front wheels. The main parts of an outer tie rod end include:

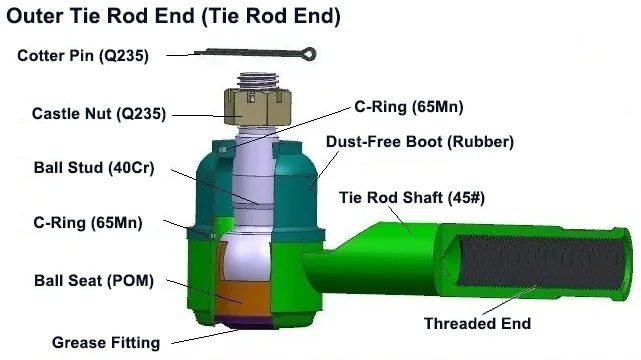

    tie rod end1
    • Tie Rod Shaft: The main shaft of the outer tie rod end is a solid metal rod that extends from the threaded end to the ball joint end. It provides a sturdy structure to connect the various components.
    • Threaded End: The threaded end of the tie rod shaft allows for connection to the inner tie rod end. This threaded connection can be adjusted to fine-tune wheel alignment.
    • Ball Stud: The outer end of the tie rod shaft features a ball stud or ball joint. This component has a spherical shape that permits a wide range of movement, allowing the front wheels to turn and articulate in response to steering inputs.
    • Boot: Similar to the inner tie rod end, the outer tie rod end also has a protective boot made of rubber or polyurethane. This boot covers the ball stud and joint, safeguarding them from dirt, moisture, and debris, which can extend the life of the component.
    • Castle Nut (or Cotter Nut): This nut is threaded onto the ball stud after the jam nut. It’s secured with a cotter pin or split pin to prevent the nut from loosening and to provide an extra layer of safety.
    • Cotter Pin (or Split Pin): The cotter pin or split pin is inserted through a hole in the castle nut and bent to prevent the nut from rotating. This ensures that the nut remains in place and maintains proper alignment.
    • Grease Fitting: Some outer tie rod ends have a grease fitting that allows for periodic lubrication, which helps reduce friction and wear on the components.

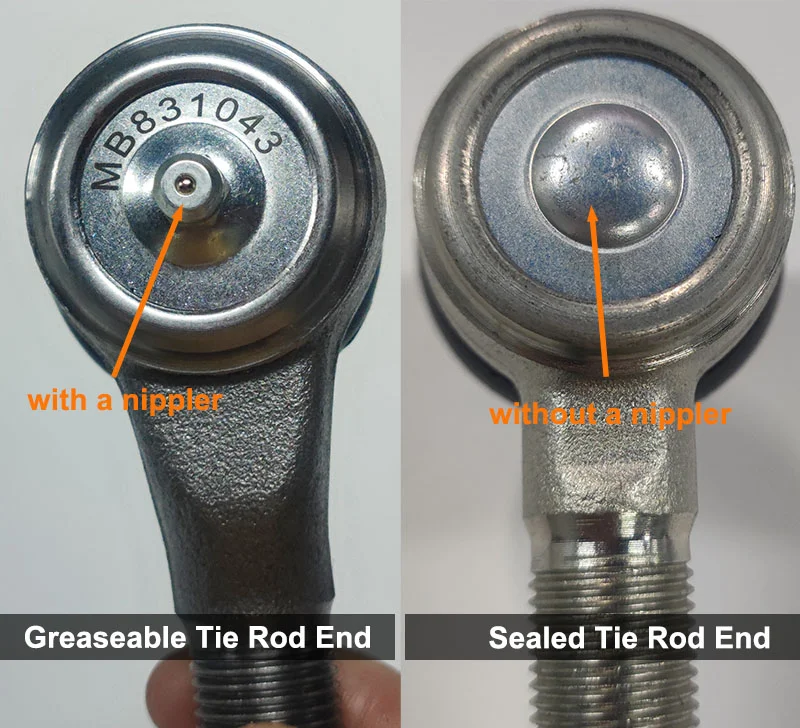

    tie rod end 2

    Where Is A Tie Rod End Located?

    A tie rod end is a component of a vehicle’s steering system, and it is located at the outer end of the steering linkage. More specifically:

    Outer Tie Rod End Location:

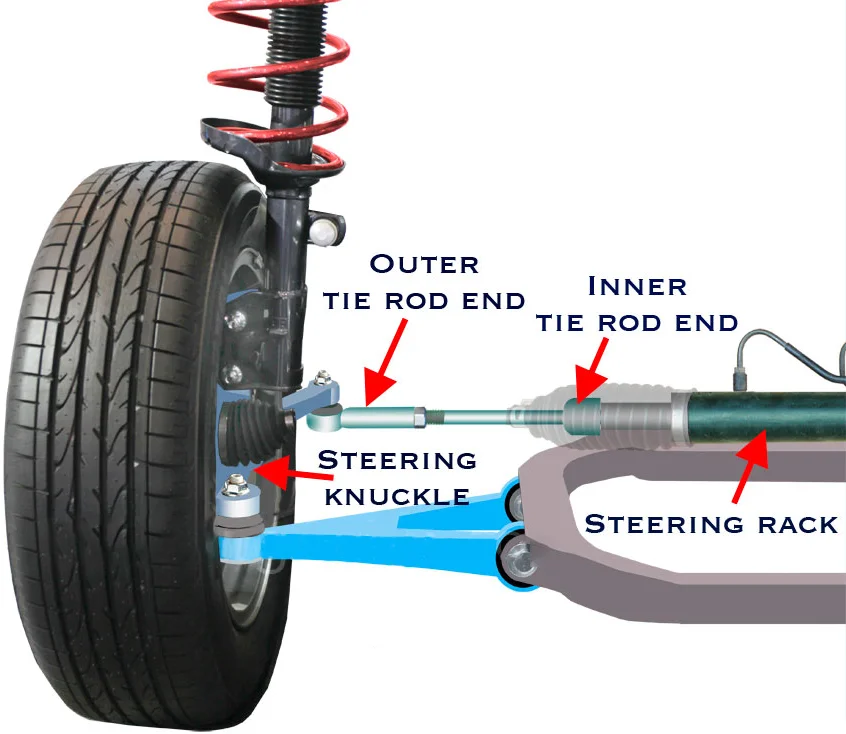

    The outer tie rod end is situated at the outermost end of the steering linkage and is attached to the steering knuckle. The steering knuckle is a part of the wheel assembly and connects to the wheel and suspension components. The outer tie rod end is responsible for connecting the steering system to the wheels, influencing wheel alignment, and assisting in steering control. Due to its position at the outer edge of the vehicle, it’s more visible and exposed to external factors.

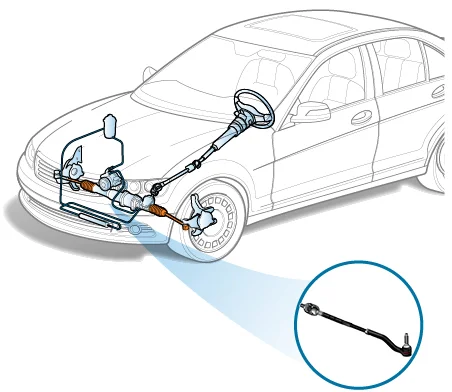

    tie rod end location

    Inner Tie Rod End Location:

    The inner tie rod end, on the other hand, is positioned within the steering rack assembly. The steering rack is a crucial component of the steering system that translates the rotational movement of the steering wheel into the linear movement that controls the alignment of the wheels. The inner tie rod ends are connected to the steering rack and are not directly visible from the outside. They play a vital role in transmitting the steering input from the driver to the outer tie rod ends, which then affects the wheel alignment.

    In essence, tie rod ends are distributed along the steering linkage to facilitate the connection between the steering system and the wheel assembly, ensuring proper steering control and alignment of the vehicle’s wheels.

    What Does A Tie Rod End Do?

    A tie rod end is a crucial component within a vehicle’s steering system that serves the following important functions:

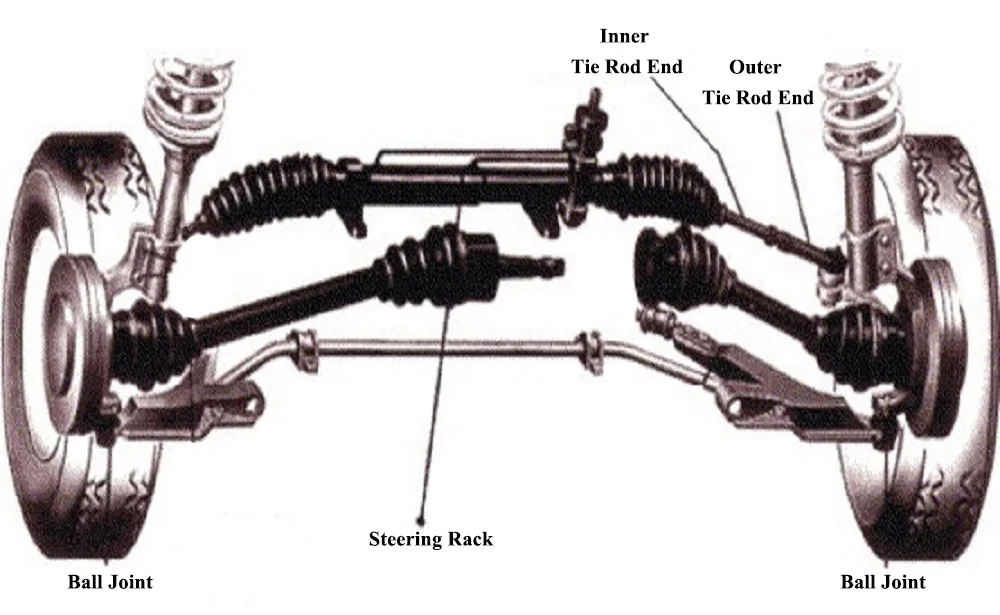

    tie rod end funcation
    • Steering Control: Tie rod ends play a pivotal role in controlling the movement and direction of the vehicle’s front wheels. When the driver turns the steering wheel, the tie rod ends transmit the steering input from the steering system to the wheels, causing them to turn in the desired direction.
    • Wheel Alignment: Tie rod ends are integral to maintaining proper wheel alignment. They help ensure that the front wheels are aligned parallel to each other and perpendicular to the road surface. Correct alignment reduces tire wear, improves handling, and enhances overall stability while driving.
    • Responsive Handling: By connecting the steering system to the wheels, tie rod ends contribute to the vehicle’s responsiveness and maneuverability. They translate the driver’s steering commands into actual wheel movement, allowing for precise and controlled navigation.
    • Suspension Support: Tie rod ends are interconnected with the suspension system, aiding in the absorption of road irregularities and bumps. This connection helps maintain stability and comfort by allowing the wheels to move up and down without compromising steering control.
    • Safety and Stability: Properly functioning tie rod ends contribute to the safety and stability of the vehicle. They ensure consistent and predictable steering behavior, which is essential for avoiding accidents and maintaining control, especially during sudden maneuvers.
    • Alignment Adjustments: In some cases, tie rod ends are adjustable. This adjustability allows for fine-tuning the alignment of the wheels to achieve optimal tire wear, handling, and steering responsiveness.
    • Even Tire Wear: Tie rod ends contribute to even tire wear by ensuring that the front wheels are aligned properly. When the wheels are properly aligned, they roll in a straight line, preventing excessive wear on the inner or outer edges of the tires.

    In essence, tie rod ends are critical for the safe and effective operation of a vehicle’s steering system. They facilitate steering control, wheel alignment, and responsive handling, all of which contribute to the overall driving experience and safety on the road.

    What are the symptoms of a bad tie rod end?

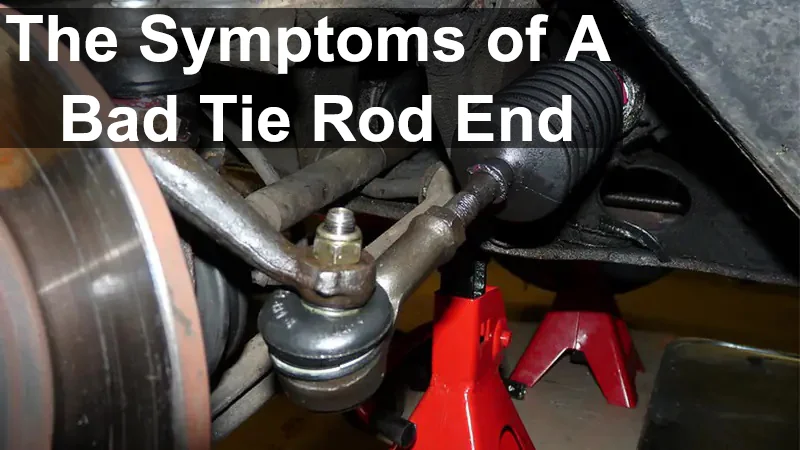

    the symptoms of a bad tie rod end

    A failing or bad tie rod end can manifest in several noticeable symptoms. It’s important to be aware of these signs, as a compromised tie rod end can affect the vehicle’s steering and handling, potentially leading to safety concerns. Common symptoms of a bad tie rod end include:

    • Uneven Tire Wear: A bad tie rod end can cause the front tires to wear unevenly, typically on the inner or outer edges. This is often due to misalignment caused by the faulty tie rod end.
    • Vibration or Shaking: If you experience vibration or shaking in the steering wheel while driving, it could indicate a problem with the tie rod end. This can result from improper alignment or instability in the front wheels.
    • Loose or Wandering Steering: A worn tie rod end can lead to loose or wandering steering, where the vehicle may feel less responsive and the steering wheel might exhibit excess play.
    • Difficulty Steering: Steering the vehicle might become more challenging, especially when trying to make precise turns or navigate corners. The vehicle might feel sluggish to respond to steering inputs.
    • Clunking or Knocking Sounds: If you hear clunking or knocking sounds when turning the steering wheel, particularly at low speeds or during parking maneuvers, it could indicate a worn-out tie rod end.
    • Pulling to One Side: If the vehicle tends to pull to one side while driving on a straight road, it might be due to uneven alignment caused by a faulty tie rod end.
    • Visible Play: If you visually inspect the tie rod end and notice excessive play or movement in the joint, it’s a sign that the component is worn and needs replacement.
    • Tire Alignment Issues: If you’ve recently had a wheel alignment, but the vehicle’s alignment quickly becomes skewed again, it could be due to a failing tie rod end.
    • Steering Wheel Off-Center: When driving straight, if the steering wheel is not centered and is turned slightly to one side, it could be a sign of tie rod end problems.
    • Fluid Leakage: In vehicles with power steering, a worn tie rod end might lead to fluid leakage from the power steering rack due to increased stress on the components.

    It’s important to address these symptoms promptly by having the vehicle inspected by a qualified mechanic. Ignoring tie rod end issues can lead to further damage to the steering system, compromised handling, and potential safety hazards on the road. Regular maintenance and timely replacements can help ensure the safety and performance of your vehicle.

    How To Buy Quality Tie Rod Ends?

    quality tie rod end
    • Know Your Vehicle: Understand your vehicle’s specifics, including the make, model, year, and trim. This information is crucial as tie rod ends can vary between different vehicles, and getting the right fit is essential for proper steering and alignment.
    • Types of Tie Rod Ends: Inner tie rod ends connect to the steering rack and are typically found closer to the center of the vehicle. Outer tie rod ends connect to the steering knuckle and are located closer to the wheel. Make sure you know which type needs replacement in your vehicle.
    • Quality Brands: Stick to well-known and reputable brands that have a track record of producing high-quality auto parts. Brands with positive reviews, a good reputation, and a history of providing reliable products are more likely to offer durable tie rod ends.
    • Material and Construction: Quality tie rod ends are constructed from robust materials like forged steel or high-strength alloys. These materials can withstand the stresses and forces exerted on tie rod ends during steering movements. Avoid cheap alternatives made from weaker materials that are prone to premature wear and failure.
    • Grease Fittings: Grease fittings allow you to apply lubrication to the tie rod end’s joint, reducing friction and wear. Choose tie rod ends with grease fittings, as regular lubrication can significantly extend the lifespan of the part and maintain its performance.
    • Sealing Mechanism: A proper sealing mechanism is important to prevent dirt, moisture, and contaminants from entering the joint. Dust boots and seals keep the internal components protected, ensuring the tie rod end remains functional and durable over time.
    • OEM vs. Aftermarket: OEM tie rod ends are made by the original manufacturer of your vehicle, ensuring a closer match to the original part. Aftermarket options are produced by third-party companies. Both can be of good quality, but OEM parts offer a level of assurance in terms of compatibility.
    • Warranty: A warranty from the manufacturer is a sign of their confidence in the quality of their tie rod ends. It provides you with reassurance that if the part fails prematurely due to manufacturing defects, you can have it replaced without extra cost.
    • Price Consideration: While it’s tempting to opt for the cheapest option, prioritize quality over price. High-quality tie rod ends may have a higher upfront cost but can save you money in the long run by lasting longer and reducing the need for frequent replacements.

    In Conclusion

    After perusing this guide, you’ve gained an enhanced comprehension of the most important component in the steering system – tie rod ends. Although they may seem simple and easy to overlook, they play an important role in ensuring appropriate steering and driving safety. Furthermore, they contribute to wheel alignment as needed.

    The knowledge presented in this comprehensive article will assist you in better maintaining this component. You’re now well-informed about its positioning and how to diagnose potential faults. Moreover, you’re equipped with the know-how to identify a high-quality tie rod end suitable for your vehicle.
