Control Arms 101: Everything You Need to Know for a Stable Ride

control arm manufacturer
Table of Contents
    Add a header to begin generating the table of contents

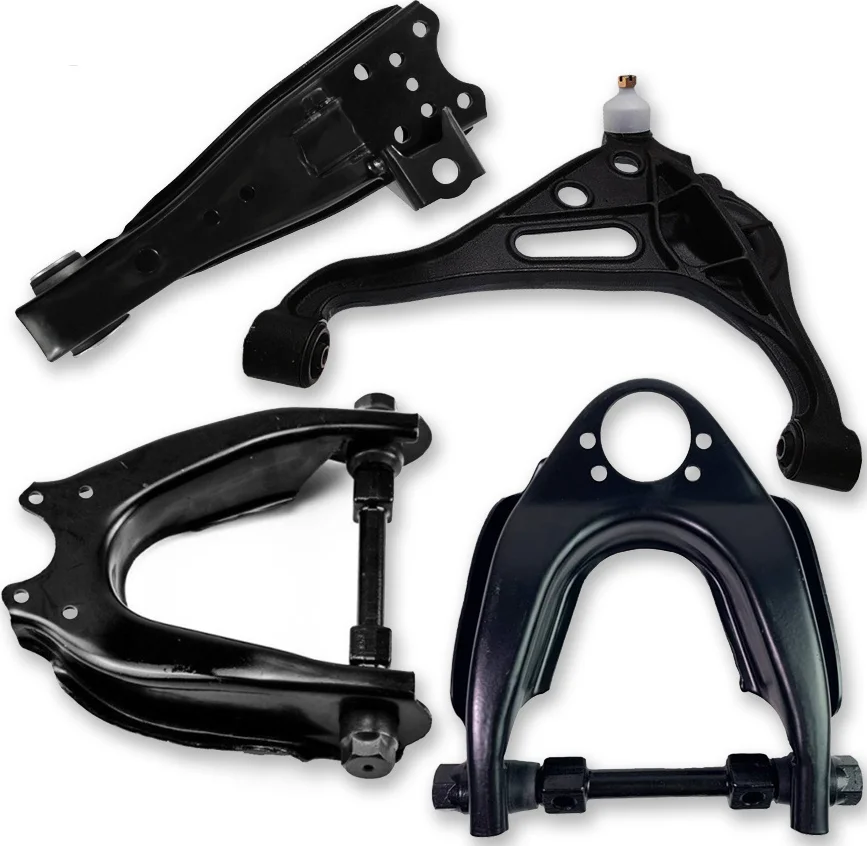

    What do control arms do?

    Control arms, also known as A-arms, are crucial components of your vehicle’s suspension system. They connect the wheel hub and steering knuckle to the frame or body of the vehicle. Here’s an overview of their function:

    control arm manufacturer
    • Handling Vehicle Motion: The primary job of the control arm is to handle the motion of the vehicle up and down and allow the wheels to move independently of the car’s body. Essentially, the control arm absorbs the bumps and variations in the road, ensuring a smoother ride.
    • Maintaining Correct Alignment: They also play an important role in maintaining wheel alignment. When your vehicle turns a corner, the control arm pivots, allowing the wheels to move up and down. By doing this, they maintain the correct alignment of your vehicle’s wheels during suspension travel (up and down motion).
    • Supporting Suspension Components: Control arms also provide a mounting point for the vehicle’s suspension components such as the shocks, struts, and springs.
    • Stability and Comfort: The control arms, in combination with the suspension system, help maintain stability and comfort while driving. They help reduce the transfer of vibration and noise from the road to the cabin, making the drive more comfortable for passengers.

    It’s important to keep control arms in good working condition. If they wear out or become damaged, you might notice symptoms like clunking noises, vibrations, wheel alignment issues, or uneven tire wear. These are signs that the control arms or their bushings or ball joints may need to be replaced.

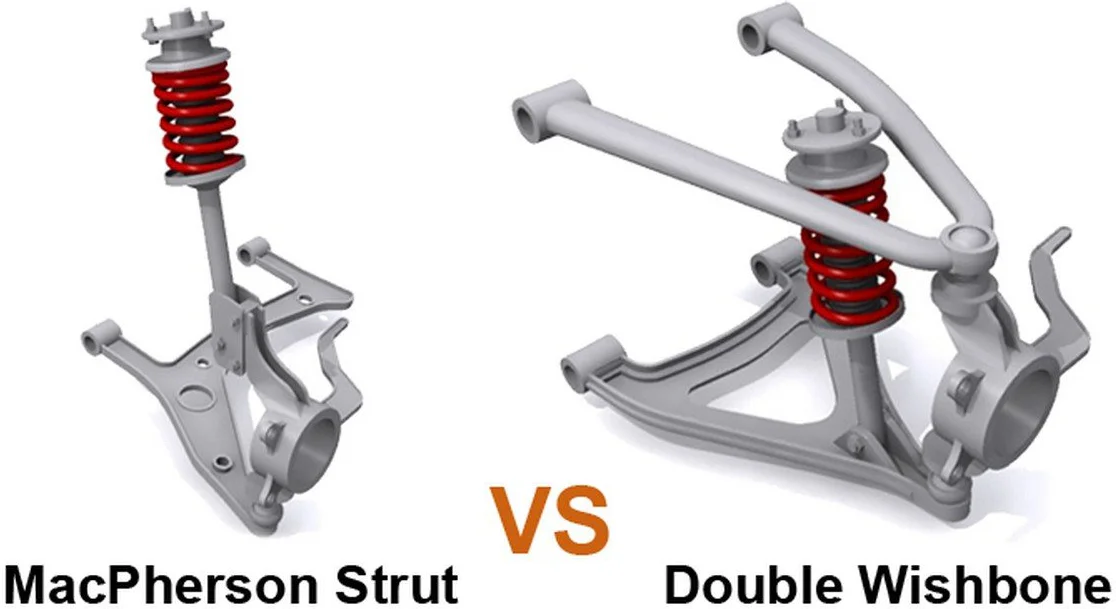

    What are 2 types of control arms?

    machpherson vs double wishbone control arm

    Control arms come in two primary types:

    • Wishbone or Double Wishbone (A-Arms): This design incorporates two control arms in the suspension assembly, one upper and one lower. Each arm has two mounting points on the frame and one at the wheel hub, forming a shape like a wishbone. This setup allows for better control of the wheel’s movement, resulting in better handling and stability. The double wishbone design is used in many high-performance cars due to its superior control over the wheel’s motion.
    • MacPherson Strut (Single Control Arm): This design utilizes one control arm, usually the lower one, while the upper control arm is replaced with a MacPherson strut. The strut is mounted to the body of the vehicle at the top and to the control arm at the bottom. This setup is more straightforward, less expensive to produce, and saves space, making it common in many passenger cars. It may not offer the same level of performance as a double wishbone design, but it is more than adequate for most everyday driving conditions.

    These are the two primary types of control arms, but there can be variations and modifications to these designs based on the specific needs and design of the vehicle. For instance, some vehicles use a multi-link suspension, which uses several control arms to allow for a greater range of motion.

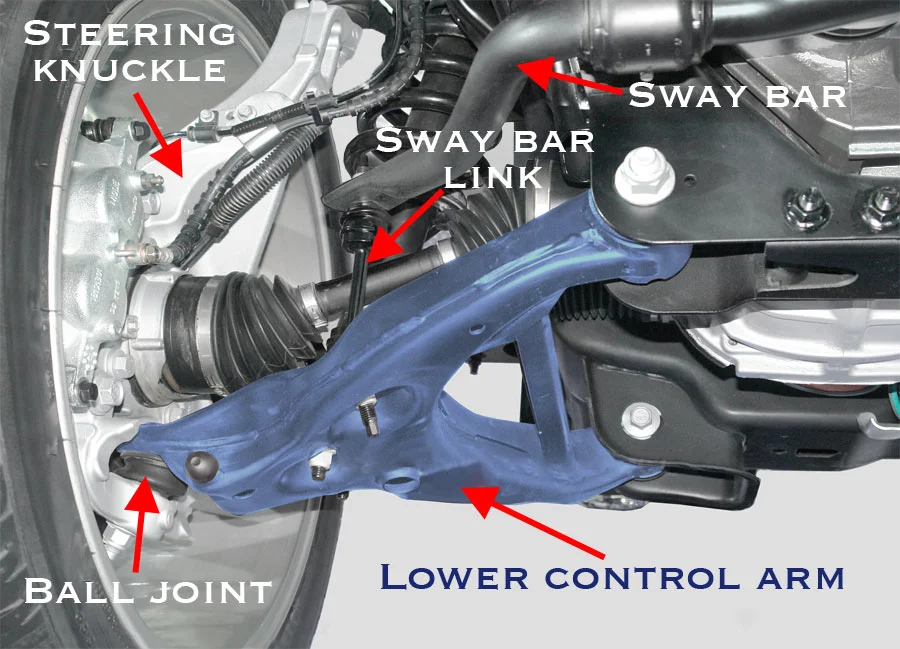

    Where are control arms located?

    control arm

    Control arms are a part of the vehicle’s suspension system and are located between the front wheels and the frame of the car. They are typically found on the front end of the vehicle, but some rear-wheel-drive vehicles also have them in the rear suspension.

    In terms of their specific location:

    In a double wishbone or A-arm suspension setup, there are two control arms (an upper and a lower) on each wheel. They are connected to the vehicle’s frame or body at one end and the wheel hub or spindle at the other. They are positioned roughly parallel to each other and perpendicular to the direction of travel.

    In a MacPherson strut suspension setup, typically only the lower control arm is present. The upper control arm is replaced by a strut, which is mounted to the body of the vehicle at the top and to the lower control arm at the bottom.

    In each case, the control arms are attached to the frame or body of the vehicle through flexible joints called bushings, and to the wheel hub or spindle through a ball joint. This allows the control arms to pivot and move with the suspension while maintaining a solid connection to the frame and wheel.

    What is the average life of a control arm?

    control arm lifespan

    The lifespan of a control arm can vary significantly depending on the type of vehicle, the conditions under which it’s driven, and how well it’s maintained. Generally, though, you might expect a control arm to last between 80,000 and 90,000 miles.

    However, the rubber bushings and the ball joints that are part of the control arm assembly may wear out sooner, depending on the usage and driving conditions. Rough or off-road driving conditions, for instance, can hasten the wear and tear on these parts.

    If you’re experiencing symptoms like clunking noises, excessive vibration, or steering wandering, these could be signs of a worn or failing control arm, bushing, or ball joint, and you should have your vehicle inspected. Even if the control arm itself is fine, worn or damaged bushings or ball joints can compromise the performance of the control arm and the overall safety of the vehicle.

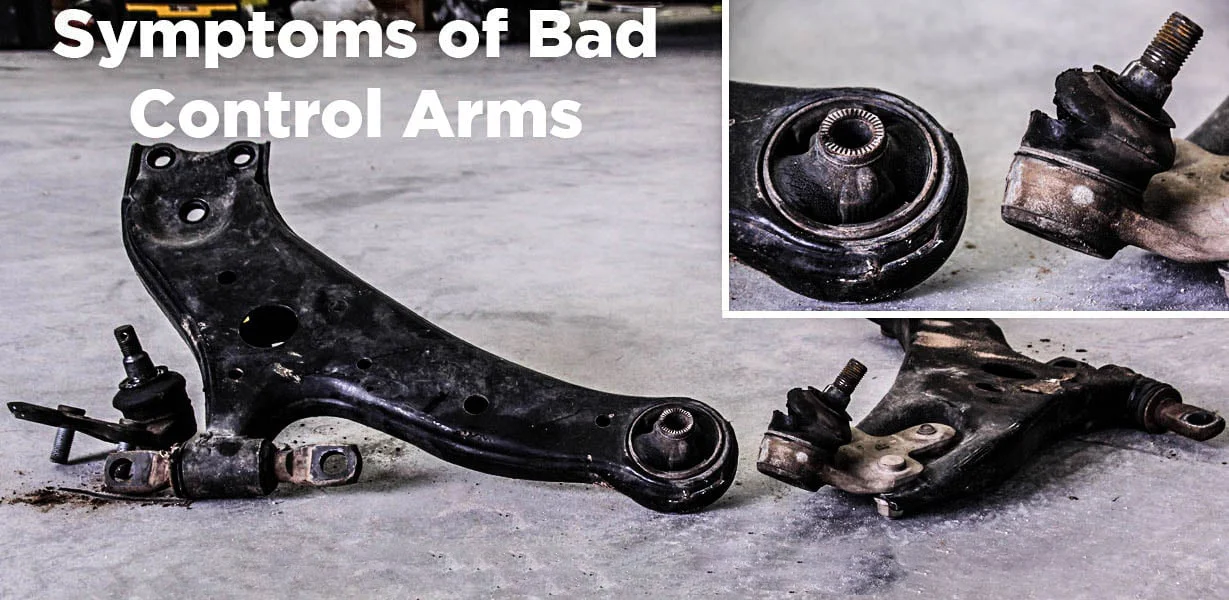

    What happens when a control arm goes bad?

    symptoms of bad control arms

    When a control arm, or more often its bushings or ball joints, starts to go bad, it can affect the handling and overall safety of the vehicle. Here are some symptoms that might indicate a problem with the control arm:

    • Excessive or uneven tire wear: Bad control arms could cause the vehicle’s alignment to shift, leading to abnormal tire wear. If you notice your tires are wearing unevenly or faster than usual, this might indicate a problem with the control arms.
    • Vibration in the steering wheel: A worn-out control arm can cause vibrations that you can feel in the steering wheel, especially when you’re accelerating or turning.
    • Steering wandering: If your vehicle doesn’t stay straight when you’re driving on a level, straight road, and tends to wander to the side, this could indicate a problem with the control arms.
    • Clunking noise: If the bushings or ball joints in the control arm become worn or loose, they may make a clunking noise, particularly when you go over bumps or make turns.
    • Poor handling or steering response: If the vehicle doesn’t respond well or as expected when you steer, this might also be a symptom of a problem with the control arms.
    • Visible damage or free movement: In extreme cases, the control arm itself might be bent or broken, often due to a collision. In such cases, you may notice the wheel moving freely or see physical damage to the arm.

    Remember, the control arm is a crucial component of your vehicle’s suspension system. If you notice any of these symptoms, it’s important to get the vehicle inspected and repaired as soon as possible to maintain safe operation.

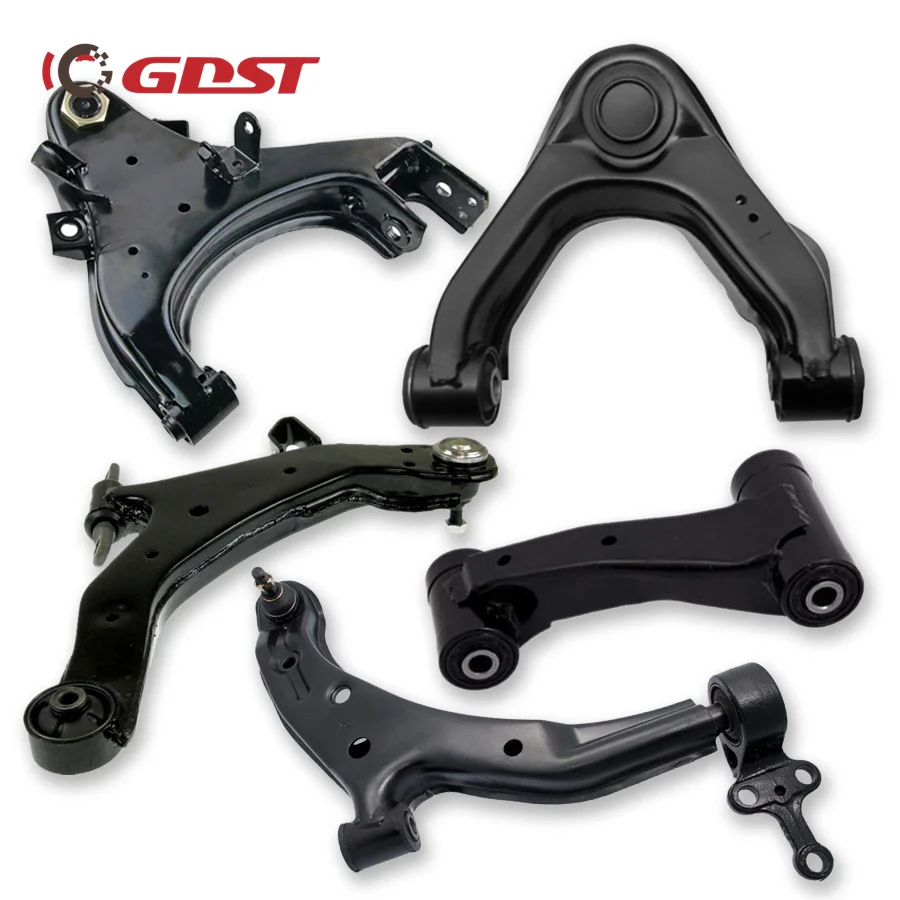

    gdst control arm factory

    In conclusion, control arms play a crucial role in maintaining stability, control, and a smooth ride in your vehicle’s suspension system. Whether you are looking to replace worn control arms or upgrade to high-performance ones, choosing the right supplier is essential.

    At GDST, we are proud to offer a wide range of top-quality control arms that are designed to meet the highest standards of performance and durability. Our team of experienced engineers and technicians ensures that each control arm is meticulously crafted using premium materials and advanced manufacturing techniques.
