In the world of automotive suspension systems, control arms play a critical role in keeping vehicles stable, safe, and comfortable to drive. Although they are not always visible to drivers, control arms are constantly working in the background, allowing wheels to move smoothly while maintaining proper alignment with the vehicle body.
For mechanics, car owners, and automotive parts distributors, understanding how control arms work is essential. Worn or damaged control arms can lead to handling issues, uneven tire wear, and suspension noise. On the other hand, high-quality control arms help maintain stable vehicle performance and driving comfort.
In this guide, we’ll explain everything you need to know about control arms, including their function, location, types, common problems, lifespan, replacement cost, and tips for sourcing reliable control arm parts.

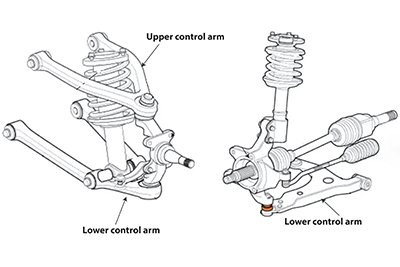

What Is a Control Arm?
A control arm is a suspension component designed to connect the vehicle frame to the wheel assembly. It serves as a structural link between the chassis and the steering knuckle.
Control arms typically include several important parts:
- The control arm body (steel or aluminum)
- Rubber or hydraulic bushings
- Ball joint
- Mounting brackets
Together, these components allow the suspension to move while maintaining proper wheel alignment.
Without control arms, the wheels would not maintain stable positioning relative to the vehicle body, which would significantly affect steering control and driving stability.
Key Facts About Control Arms
- Control arms connect the suspension system to the vehicle chassis
- They allow vertical wheel movement while maintaining alignment
- Most vehicles use upper and lower control arms
- Worn control arms may cause noise, vibration, and uneven tire wear
- Typical lifespan ranges between 90,000 km and 150,000 km

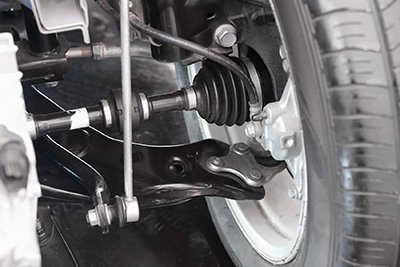

What Does a Control Arm Do?
The main job of a control arm is to manage the movement of the wheel while keeping it properly aligned with the vehicle chassis.
- Connects the Wheel Assembly to the Chassis
Control arms create a physical link between the suspension and the vehicle frame.
- Allows Vertical Suspension Movement
When a vehicle drives over bumps or uneven roads, the suspension needs to move up and down. Control arms enable this movement while maintaining stability.
- Maintains Wheel Alignment
Control arms help keep the wheels positioned correctly so the tires maintain proper contact with the road.
- Works with Bushings and Ball Joints
Bushings absorb vibration and reduce noise, while ball joints allow pivoting movement during steering.
Learn more about the Function of A Control Arm →

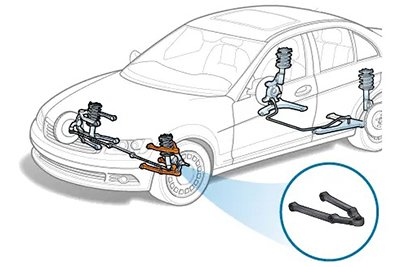

Where Is the Control Arm Located?
Control arms are located within the vehicle suspension system, connecting the chassis to the wheel hub or steering knuckle.
Most vehicles have control arms in the front suspension, while some independent rear suspension systems also use rear control arms.
Depending on the suspension design, a vehicle may use:
- Upper control arms
- Lower control arms
- Multiple-link control arms
In many cases, the lower control arm is larger and carries more load because it supports a significant portion of the vehicle’s weight.
Read the detailed guide on Control Arm Location →

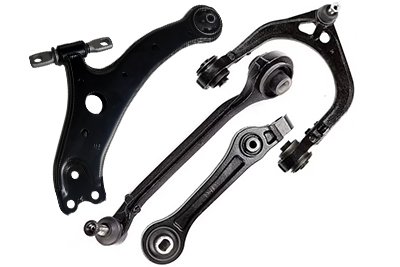

Types of Control Arms
Depending on the vehicle’s suspension design, different types of control arms are used to manage wheel movement and maintain proper alignment.
Below are the most common types of control arms found in modern vehicles.
Upper Control Arm
The upper control arm sits above the steering knuckle and works with the lower control arm to guide the vertical movement of the wheel.
This design is typically found in double wishbone suspension systems, where both upper and lower arms help keep the wheel stable during cornering, braking, and uneven road conditions.
Although upper control arms usually carry less load than the lower ones, they still play an important role in maintaining suspension geometry.
Lower Control Arm
The lower control arm links the steering knuckle to the vehicle frame from the lower side of the suspension system.
Since it supports a significant portion of the vehicle’s weight and absorbs much of the road impact, it is generally larger and more robust than the upper control arm.
Lower control arms often integrate ball joints and bushings, which allow controlled movement while reducing vibration transmitted to the vehicle body.
Adjustable Control Arm
Adjustable control arms are designed to give technicians more flexibility when setting up the suspension geometry.
By adjusting the arm length or mounting points, mechanics can fine-tune wheel alignment angles such as camber or caster.
These types of control arms are commonly used in performance vehicles, modified suspensions, or off-road applications where precise alignment adjustments are required.

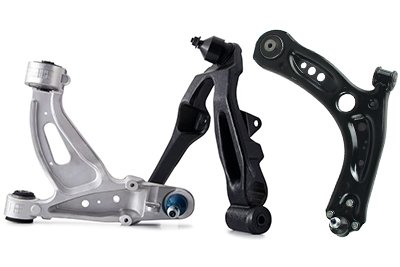

Control Arm Material Types
Control arms are typically manufactured from several materials:
Stamped Steel Control Arms
Durable and cost-effective
Common in mass-production vehicles
Forged Control Arms
Higher structural strength
Better fatigue resistance
Aluminum Control Arms
Lightweight design
Often used in modern passenger vehicles

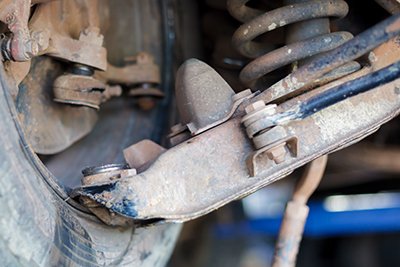

Symptoms of a Bad Control Arm
Control arms can wear out over time, especially under harsh driving conditions.
Common warning signs include:
Clunking or Knocking Noise
A knocking sound when driving over bumps may indicate worn bushings or a loose ball joint.
Uneven Tire Wear
Damaged control arms can affect wheel alignment, leading to abnormal tire wear.
Steering Instability
Drivers may notice the vehicle pulling to one side or experiencing unstable steering.
Vibration While Driving
Excessive steering wheel vibration can also indicate suspension component wear.
Read the full guide on Symptoms of A Bad Control Arm →

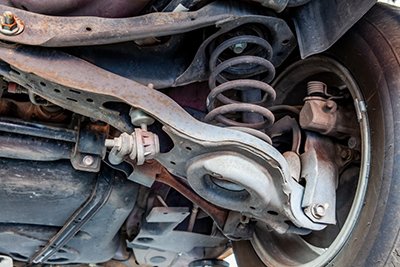

What Causes Control Arms to Fail?
Several factors can contribute to control arm damage or wear:
Rough Road Conditions
Frequent driving on potholes or uneven roads accelerates suspension wear.
Bushing Wear
Rubber bushings gradually degrade due to heat, friction, and aging.
Corrosion
Moist environments and road salt may cause corrosion in metal components.
Impact Damage
Collisions with curbs or large potholes can bend the control arm.

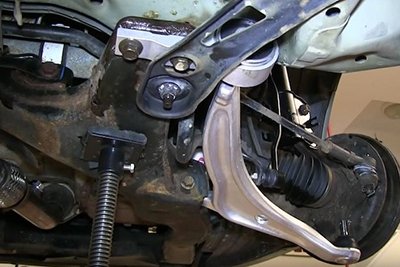

How Long Do Control Arms Last?
In most vehicles, control arms typically last between 90,000 km and 150,000 km.
However, their lifespan depends on several factors:
- road conditions
- driving habits
- vehicle type
- part quality
Regular suspension inspections can help detect early wear before more serious problems develop.
Learn more about Control Arm Lifespan →

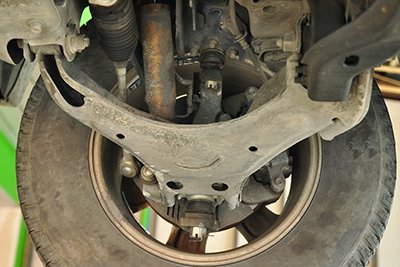

When Should You Replace a Control Arm?
A control arm should be replaced if:
- the bushings are severely worn
- the ball joint becomes loose
- the control arm is bent
- abnormal suspension noise appears
In many cases, replacing the entire control arm assembly is more efficient than replacing individual bushings.
Read the guide on When to Replace Control Arms →
How Much Does Control Arm Replacement Cost?
The cost of replacing a control arm depends on vehicle type and part quality.
Typical price ranges include:
Parts cost: $50 – $300 per control arm
Labor cost: $100 – $400, depending on vehicle complexity
In many markets, complete control arm assemblies are commonly used because they simplify installation and reduce labor time.
Read the detailed guide on Control Arm Replacement Cost →
Control Arm Procurement Guide
For automotive parts distributors and importers, sourcing reliable control arms is essential for maintaining product quality and customer trust.
When evaluating suppliers, consider the following factors:
Manufacturing Capability
Reliable manufacturers should have advanced stamping, forging, and welding processes.
Quality Testing
Quality control procedures may include:
- fatigue testing
- dimensional inspection
- material verification
Product Range
Suppliers with a wide product range can cover multiple vehicle models and markets.
OEM Experience
Manufacturers with OEM production experience often follow stricter quality standards.
Packaging and Customization
Many suppliers provide private label packaging services for distributors building their own brands.
Learn more about Control Arm Procurement Guide →
Need Reliable Control Arm Supply?
We manufacture 2000+ control arm models for passenger and commercial vehicles, with IATF16949 certification and 20+ years export experience.
What You Get:
- FOB pricing within 48 hours
- Lower MOQ at factory prices
- Free samples for quality evaluation (freight collect)
- Full technical documentation (material certs, test reports)
- Private label and custom packaging options
Related Control Arm Guides
If you’d like to explore more suspension topics, you may also find these guides helpful:
- Function of a Control Arm – Learn how this component stabilizes the suspension system
- Control Arm Location – Understand where control arms are positioned in a vehicle
- How Control Arms Work – A detailed explanation of suspension movement
- Symptoms of a Bad Control Arm – Common warning signs of suspension problems
- Control Arm Lifespan – How long control arms typically last
- How to Replace a Control Arm – A step-by-step guide explaining the control arm replacement process
- Control Arm Replacement Cost – Average cost for parts and labor
- Control Arm Manufacturing Processes – Explore how control arms are manufactured
- How to Purchase Control Arm from China – how to evaluate suppliers, choose reliable manufacturers, and avoid common sourcing mistakes
- Top Control Arm Manufacturers in China – Reliable suppliers for automotive buyers
FAQ
A control arm connects the wheel hub to the vehicle chassis and allows the suspension to move up and down while maintaining proper wheel alignment.
Most control arms last between 90,000 km and 150,000 km, depending on driving conditions and part quality.
Common symptoms include clunking noises, steering instability, uneven tire wear, and vibration while driving.
Driving with a damaged control arm can affect suspension stability and vehicle control, so it should be repaired asap.
Control arm replacement typically costs between $150 and $700, including parts and labor.
Request material certifications, fatigue test reports, and salt spray test results. Conduct third-party sample testing and factory visits before placing large orders.
Minimum: ISO9001. Preferred: IATF16949 (automotive quality management). ISO14001 is a bonus for environmental compliance.
