Many mechanics and auto parts sellers struggle to explain suspension issues clearly. When a customer asks about how to replace control arm, your answer should sound both expert and human. Here’s a practical, professional guide to help you walk them through it—step by step.
To replace a control arm, jack up the car, remove the wheel, disconnect the ball joint, unbolt the control arm, install the new one, then reassemble and torque everything to spec. Follow proper safety steps and get a wheel alignment afterward. It’s a repair that takes focus, but it’s doable.
Let’s tell you the full replacement process in six clear steps, so you can confidently guide customers or handle the job yourself.
How to Replace a Control Arm
Replacing a control arm isn’t overly technical, but it requires precision and patience. The following general steps apply to most passenger vehicles. Always consult the service manual for torque specs and specific instructions.
Step 1: Preparation – Tools and Safety First
Before touching the vehicle, make sure you have all the necessary tools on hand. Control arm replacement isn’t overly complicated, but missing tools or steps can make it frustrating—or dangerous.
Tools you’ll need:
- Floor jack and jack stands
- Lug wrench or impact gun
- Socket set and breaker bar
- Torque wrench
- Ball joint separator (pickle fork or puller)
- Penetrating oil (for rusted bolts)
- Gloves and eye protection
Before you start:
- First, park the vehicle on level ground and tighten the handbrake.
- Use wheel chocks behind the opposite wheels.
- Read the service manual to locate torque specs and identify whether you’re replacing the upper or lower control arm.
- Take a photo of the suspension setup for easier reassembly.
Tip: Spray rusted bolts with penetrating oil 15 minutes in advance—it saves time later.

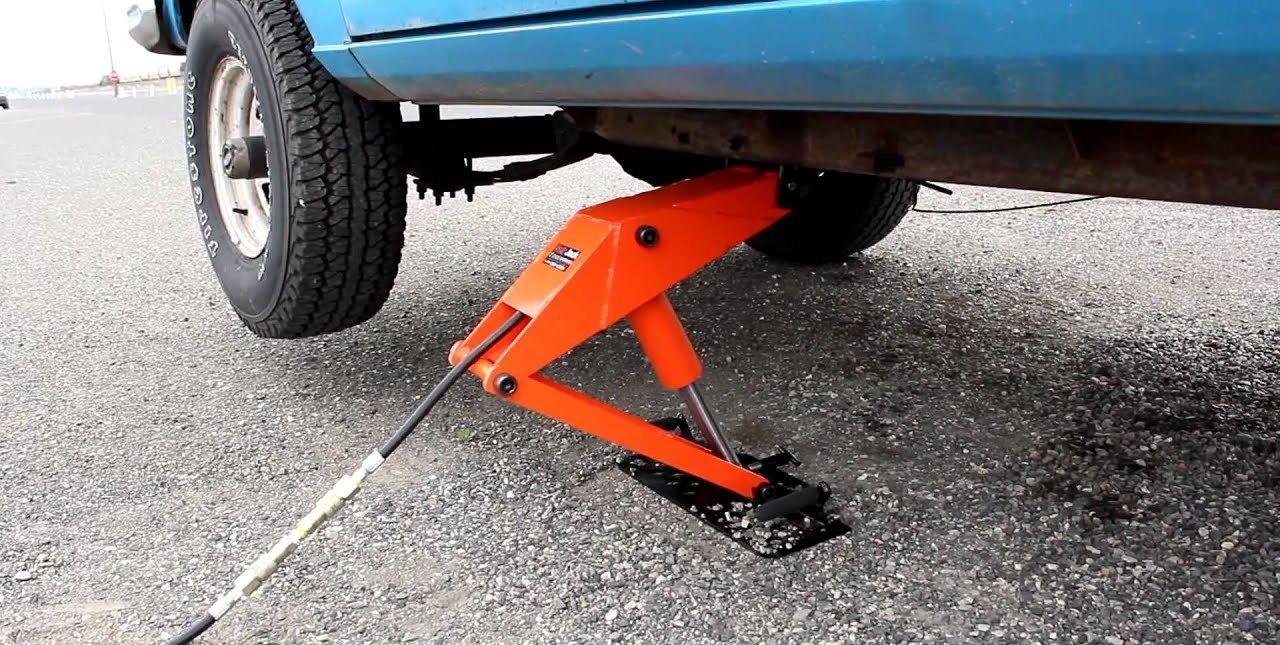

Step 2: Lift the Vehicle and Access the Control Arm
Use a floor jack to lift the car at the correct jacking point. Place jack stands securely under the chassis or pinch welds. Never rely on the jack alone when working underneath.
Next, loosen the lug nuts (if you haven’t already), remove the wheel, and set it aside. With the wheel off, you’ll have a clear view of the control arm and the surrounding suspension.
Now identify the control arm you’re replacing—lower control arms are most common, but some vehicles also use upper control arms (especially in double wishbone setups). Check for visible damage like:
- Torn bushings
- Cracked or bent metal
- Excessive rust
- Loose or leaking ball joints
Some cars may have plastic shields or covers that need to be removed to access the arm.

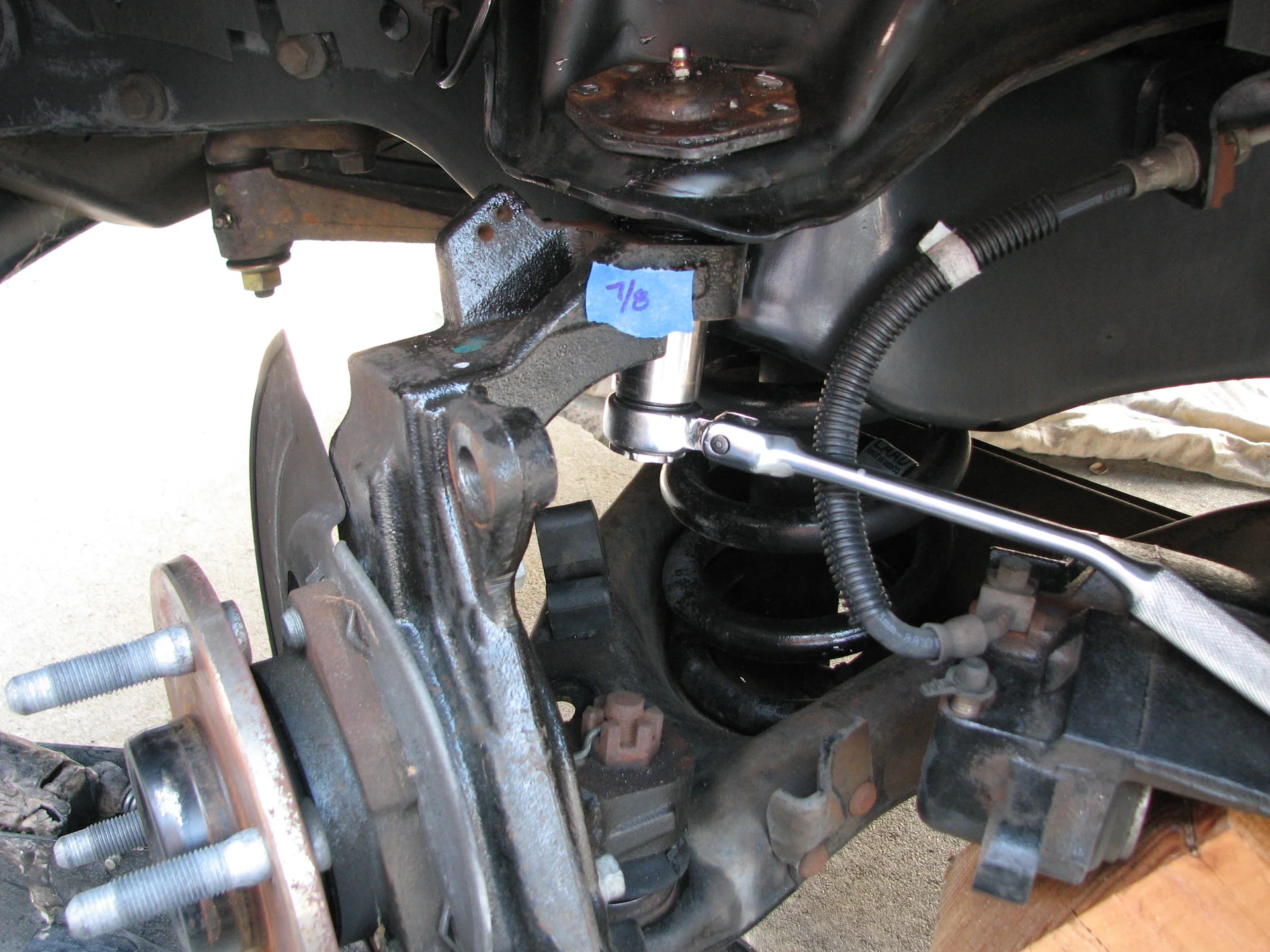

Step 3: Remove the Ball Joint
Use a ball joint removal tool—like a pickle fork or separator—to loosen the joint from the steering knuckle. These joints are usually tapered and press-fit, so expect resistance. Tapping gently with a hammer often helps.
If you’re working on an older or rusty car, it helps to spray some penetrating oil on the joint and let it soak for a bit. When it’s time to separate the ball joint, give it a few solid hits—but aim carefully so you don’t crack the boot or bend the knuckle. If space is tight, a press tool might be a better option than swinging a hammer.
Be careful not to damage nearby components like the brake hose or ABS wire. You can use a bungee cord or wire hanger to support the knuckle and reduce strain on those parts.

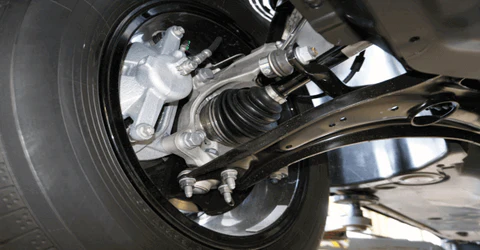

Step 4: Disconnect the Control Arm from the Frame
Look for the bolts holding the control arm to the car’s frame or subframe—they’re usually easy to spot but can be seriously tight. If your vehicle uses cam bolts for alignment, it’s a good idea to mark their original position with chalk or paint before taking anything apart. That’ll save you some headaches later when putting things back.
Use a breaker bar to loosen these bolts—they’re often very tight or rusted. Spray penetrating oil in advance, and be patient when working them out. Once loosened, remove the control arm completely with a slight twist or wiggle—it may be snug in its mounting points.
Note: Don’t forget any sway bar end links or stabilizer mounts attached to the control arm.

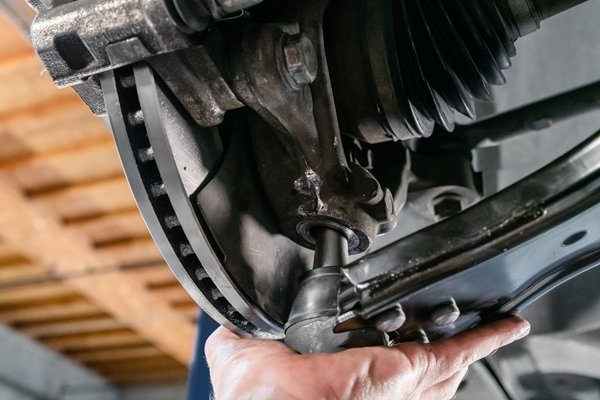

Step 5: Compare Parts and Install the New Control Arm
Place the new control arm beside the old one and ensure everything matches—mounting holes, ball joint angle, length, and bushing type. Then, install the new control arm in reverse order:
- Attach to the frame
- Torque all bolts to spec
- Reconnect the ball joint
- Reinstall sway bar links (if applicable)
Lower the car slightly so the suspension is “loaded” before you torque to spec. This prevents bushing pre-load and premature wear.

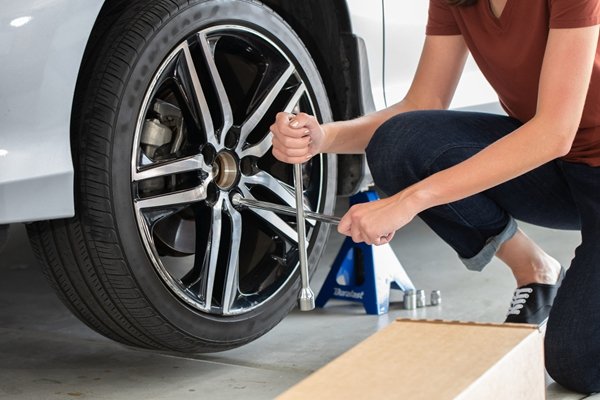

Step 6: Reinstall the Wheel and Perform Final Checks
Reinstall the wheel and torque the lug nuts in a star pattern, then lower the car completely. Use a torque wrench to tighten all suspension bolts to spec, and double-check that nothing is loose or missing.
Don’t forget to get a proper wheel alignment after replacing the control arm. Misaligned wheels can make the car handle poorly and wear out your tires faster.
After you’ve wrapped things up, take the car for a short spin—nothing too far. Pay attention to any weird noises, like clunks when turning or squeaks over bumps. Back in the garage, grab your torque wrench and double-check the bolts just to be safe. It’s also worth taking a look at nearby bushings or ball joints—if one part was worn out, chances are the others aren’t far behind.
Control Arm Replacement: Key Differences by Suspension Type
The exact replacement process can vary depending on the suspension setup. Here’s what to keep in mind:
MacPherson vs. Double Wishbone
- MacPherson strut systems (common in compact and FWD cars) usually involve a single lower control arm that’s fairly easy to access.
- Double wishbone systems have both upper and lower control arms. The lower arm is replaced similarly, but the upper arm may require removal of the shock absorber or sway bar to access bolts.
FWD, RWD, and AWD Differences
- FWD vehicles tend to have easier access in the front but may require maneuvering around the axle.
- RWD and AWD vehicles, especially in the rear, may have control arms placed near the differential or exhaust, requiring more disassembly and working space.
Air Suspension Vehicles: If the car you’re working on has air suspension, be careful—this isn’t a system you can just lift and forget. Make sure to disable the suspension first, either through service mode or the vehicle’s onboard system. If you skip this step, the suspension could react unexpectedly—sometimes inflating or deflating suddenly—which can damage parts or even injure you. Honestly, unless you’re trained on these systems, it’s smarter to leave this one to the pros.
Control arm replacement isn’t just a repair—it’s a trust-building opportunity. When you understand the process deeply, you serve your customers better. Use this guide to explain clearly, work confidently, and build credibility. Got questions or want more repair guides? Let’s talk below.
