A car’s steering system depends heavily on its tie rod ends. These small parts connect the steering rack to the wheels, and when they wear out, the result is sloppy steering, uneven tire wear, or even dangerous loss of control. For workshops and auto businesses, knowing how to replace tie rod ends is a crucial skill that enhances customer trust and ensures vehicles remain safe on the road.
In this guide, we provide everything you need: the required tools, guidance on selecting the correct replacement parts, a step-by-step replacement course, and instructions on what to do after installation.
Preparation Before Replacing Tie Rod Ends

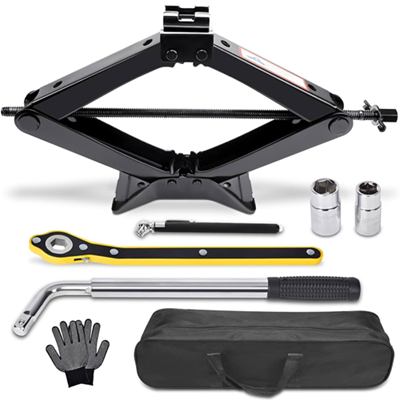

Tools You Will Need
Replacing tie rod ends does not require the most advanced equipment, but having the right tools makes the process smoother:
- Jack and jack stand – these are used to lift vehicles and provide secure support.
- Lug wrench – for removing the wheel
- Wrenches (open-end or adjustable) – to loosen and tighten nuts
- Pliers – for removing the cotter pin
- Rod removal tool or pry fork – for separating the rod end from the steering knuckle
- Torque wrench – to secure nuts at the correct torque
- Grease gun – if your replacement tie rod ends come with grease fittings
- Inner tie rod tool – useful when you also replace inner tie rods
Even though some guides talk about how to remove the inner tie rod without a tool, using the correct removal tool is always safer and more professional.
Choosing the Right Replacement Part
Not all tie rod ends are built the same, and using the wrong one can quickly undo your work. Here’s how to make sure you choose correctly:
- Match the vehicle: Use the car’s year, make, and model to get the right fit.
- Inner vs outer tie rod: Some repairs require just the outer, while others may need both inner and outer tie rods replaced.
- Quality of the part: OEM or high-quality aftermarket parts last longer than cheap alternatives.
- Thread size and length: Even a small difference can throw off the steering alignment.
A simple tip: bring the old tie rod end to the parts supplier or use the vehicle’s VIN to double-check compatibility.
Step-by-Step: How to Replace Tie Rod Ends

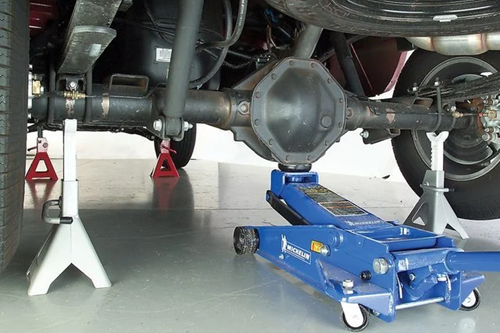

Safety Preparations
Before you begin, it’s important to think about safety and a few common challenges that often come up with this job.
- Park the vehicle on a level surface.
- Pull up the parking brake and chock the rear wheels.
- Jack up the front of the car and secure it with jack stands.
- Remove the wheel using a wheel spanner to facilitate the operation.
Pro Tips:
- Old cars usually mean rust. A quick spray of penetrating oil before you start makes life easier.
- Some people try to remove inner tie rods without the right tool, but if you’re doing this often, having an inner tie rod tool is worth it.
- Always check if you’re replacing the inner, outer, or both—getting the wrong part slows everything down.
These small habits make the job smoother and help avoid the headaches that many first-timers run into.
Removing the Old Tie Rod End

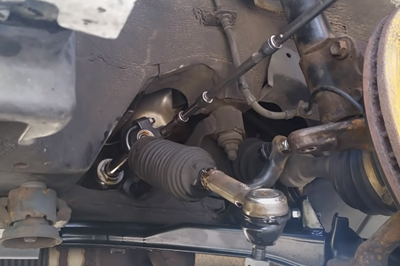

- Locate the tie rod end: It’s the joint connected to the steering knuckle.
- Loosen the jam nut: This nut locks the tie rod end in place on the steering linkage. Loosen it with a wrench, but do not remove it yet.
- Remove the cotter pin and castle nut: Use pliers to pull out the cotter pin, then unscrew the nut holding the tie rod end to the knuckle.
- Separate the tie rod end: A tie rod removal tool or pickle fork makes it easy to remove the stud from the knuckle. Some mechanics give the knuckle a light tap with a hammer, but using the right tool is usually quicker and safer.
- Unscrew the tie rod end: Turn it off the threaded rod, counting the exact number of rotations. This helps keep alignment close when you install the new part.

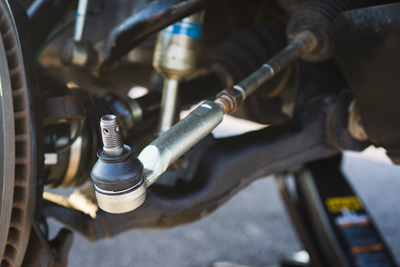

Installing the New Tie Rod End
Putting the new tie rod end in place is all about accuracy. A small mistake here can throw off the steering or shorten the life of the part. Take your time and follow these steps carefully:
- Thread the new tie rod end: Screw it on using the same number of turns counted during removal.
- Reconnect to the steering knuckle: Insert the stud into the knuckle.
- Secure with castle nut and cotter pin: Torque the nut to spec, then insert a fresh cotter pin.
- Tighten the jam nut: Secure it against the tie rod so the end stays locked in place.
- Grease the joint if needed: Some tie rod ends come pre-greased, others require a grease gun.
- Reinstall the wheel: Torque the lug nuts properly to avoid wheel issues.
- Lower the vehicle: Carefully bring the car back to the ground.
What to Do After Replacement
The work isn’t finished when the new parts are bolted in. Skipping the final steps can lead to unhappy customers and return jobs.

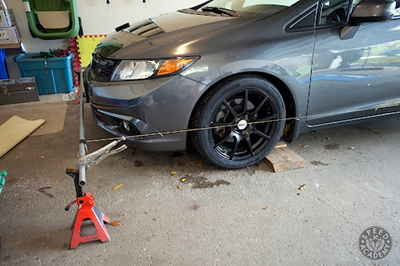

Wheel Alignment Is a Must
Even if you counted the turns during removal, the wheel alignment will rarely be perfect. Driving without proper alignment causes:
- Uneven tire wear
- Steering pulls to one side
- A crooked steering wheel
For this reason, every professional shop should recommend alignment after tie rod replacement. While some drivers ask how to change a tie rod end without alignment, the truth is that alignment is always best practice.
Road Test the Vehicle
Take the car for a short drive. Check if the steering feels smooth and responsive, and listen for unusual clunks. This is also the time to confirm the steering wheel is centered.
Final Safety Inspection
Once the job is done, go over everything one more time. Make sure all nuts are tight, the cotter pin is in place, and there are no grease leaks. This extra check takes only a minute but gives peace of mind and keeps the car safe.
Conclusion
Replacing tie rod ends may look like a small job, but it plays a big role in keeping a car safe and comfortable. When you do it carefully, it improves steering control, prevents uneven tire wear, and gives drivers more confidence on the road. For workshops, it’s also a chance to show professionalism and care in every detail. Ultimately, we’re not just repairing cars, we’re developing trust with every one of our customers.
