    Suspension parts and steering parts are two distinct systems in a vehicle, but they work closely together to provide a comfortable and controlled driving experience.

    1. Suspension parts are responsible for supporting the weight of the vehicle, absorbing shocks and vibrations from the road, and maintaining contact between the tires and the road surface. The main suspension parts include Springs, Shock absorbers, Control arms, Struts, Sway bars, Bushings, and Ball joints.
    2. Steering parts are responsible for translating the driver’s input into directional control of the vehicle. They allow the driver to steer the vehicle and maneuver effectively. The main steering parts include a Steering wheel, Steering column, Steering gearbox or rack and pinion, Tie rods, Pitman arm, Idler Arm, a power steering pump, a fluid reservoir, and steering assist mechanisms.

    Today let’s explore some of the suspension and steering parts: ball joint, stabilizer link, tie rod end, rack end, tie rod assembly, center link, pitman arm, idler arm, and inner arm shaft kit.

    Suspension Parts: Ball Joint, Stabilizer Link

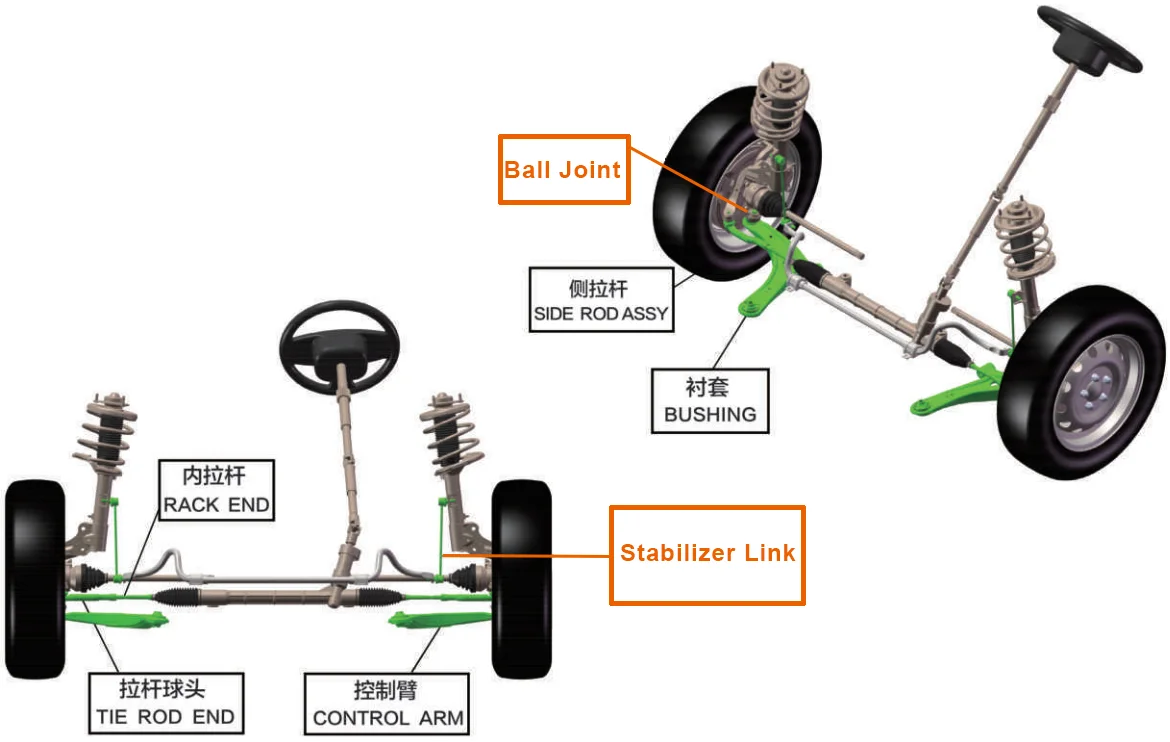

    suspension parts system

    A stabilizer link, also known as a sway bar link or end link, is a suspension component that connects the sway bar (also called a stabilizer bar or anti-roll bar) to the suspension system of a vehicle. It plays a crucial role in controlling body roll and improving stability during cornering.

    • The stabilizer link typically consists of a threaded metal rod with ball joints or bushings on either end. One end of the link connects to the sway bar, while the other end connects to the control arm, strut, or another suspension component. The ball joints or bushings allow for articulation and movement as the suspension goes through its range of motion.
    • The purpose of a sway bar is to resist the rolling motion of a vehicle when it is subjected to lateral forces during turns. It connects the left and right sides of the suspension together. The stabilizer link acts as a link between the sway bar and the suspension, transmitting the forces and allowing the sway bar to perform its function effectively.

    A ball joint is a critical suspension component that connects the control arm to the steering knuckle or spindle in a vehicle’s suspension system. It allows for the movement and rotation of the front wheels while providing stability and control.

    • The ball joint consists of a spherical bearing with a stud or housing attached to it. The stud or housing is typically threaded and secured to the control arm or steering knuckle. The spherical bearing allows for multi-directional movement, including rotation and pivoting, which is essential for the steering and suspension system to function properly.
    • The primary function of a ball joint is to provide a flexible connection between the control arm and the steering knuckle or spindle, allowing the wheels to move up and down in response to road irregularities while maintaining proper alignment and control. This flexibility is necessary for steering, absorbing shocks, and maintaining tire contact with the road surface.

    Steering Parts: Tie Rod End, Rack End, Tie Rod Assembly, Center Link, Pitman Arm, Idler Arm, and Inner Arm Shaft Kit

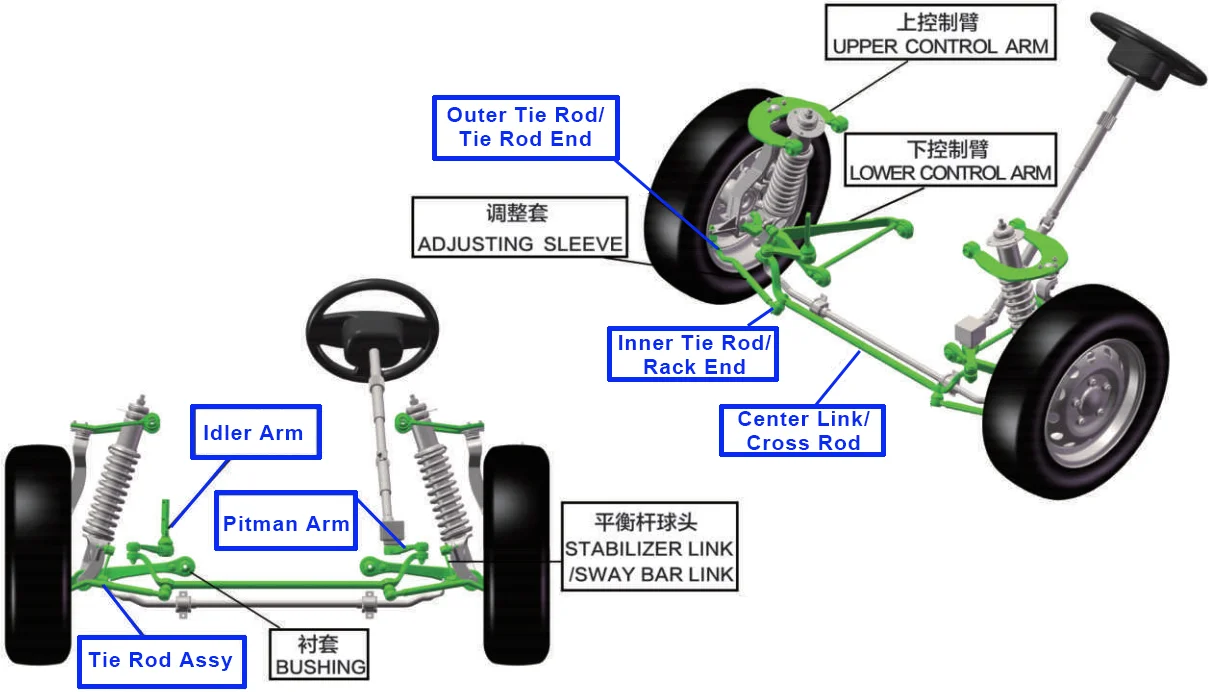

    steering parts system

    A rack end, also known as an inner tie rod is a crucial component of a vehicle’s steering system. It is located on the inner side of the steering assembly and connects the steering rack or gearbox to the outer tie rod end (tie rod end).

    • The rack end consists of a threaded rod with a ball joint or socket at one end and a threaded connection at the other end. The ball joint or socket is connected to the steering rack or gearbox, while the threaded end connects to the outer tie rod end.
    • The primary function of the rack end is to transmit the steering input from the driver to the wheels. When the driver turns the steering wheel, the steering rack or gearbox converts the rotational motion into linear movement, which is transferred to the rack end. This movement then pushes or pulls the outer tie rod end, causing the front wheels to turn accordingly.

    A tie rod end, also known as the outer tie rod end is a critical part of a vehicle’s steering system, connecting the rack end to the steering knuckle or spindle. It is located on the outer side of the steering assembly.

    • The tie rod end consists of a threaded rod with a ball joint or socket at one end and a threaded connection at the other end. The ball joint or socket connects to the steering knuckle or spindle, while the threaded end connects to the rack end.
    • The primary function of the tie rod end is to transmit the steering input from the rack end to the steering knuckle. When the rack end moves in response to steering input, it pushes or pulls the tie rod end, causing the steering knuckle to turn the front wheels.

    A center link, also known as the drag link/cross rod, is a key component of the steering system in many vehicles. It plays a critical role in transmitting the steering input from the pitman arm to the steering knuckles, thus controlling the movement and steering of the front wheels.

    • The center link is a sturdy, rigid metal rod that connects the pitman arm, which is attached to the steering gearbox or steering rack, to the steering knuckles or steering arms on both sides of the vehicle. It typically runs parallel to the vehicle’s axle and is positioned at the center or front of the vehicle’s suspension system.
    • The primary function of the center link is to transfer the rotational motion from the pitman arm to the steering knuckles, allowing for the synchronized turning of the front wheels. When the driver turns the steering wheel, the steering gearbox or rack rotates the pitman arm, which, in turn, moves the center link. This movement is then transmitted to the steering knuckles or steering arms, causing the front wheels to turn accordingly.

    A pitman arm is an important component of the steering system in vehicles equipped with a recirculating ball steering gearbox (also known as a worm and sector steering gearbox). It is a linkage that connects the steering gearbox to the steering linkage or center link.

    • The Pitman arm is typically a sturdy, flat, or slightly curved metal arm that is attached to the output shaft of the steering gearbox. One end of the Pitman arm has a ball joint or pivot point that connects to the steering linkage or center link. The other end of the Pitman arm is connected to the steering gearbox output shaft, which translates the rotational motion from the steering gearbox into linear movement.
    • When the driver turns the steering wheel, it causes the steering gearbox output shaft to rotate. This rotational motion is transferred to the Pitman arm, which then moves the steering linkage or center link. The movement of the Pitman arm, in turn, causes the front wheels to turn and change direction.

    An idler arm is an essential component of the steering system in vehicles equipped with a parallelogram steering linkage, such as the recirculating ball or rack and pinion steering systems. It is a pivoting linkage that helps support and control the movement of the steering linkage.

    • The idler arm is typically a sturdy metal arm that is connected to the vehicle’s frame or subframe at one end and to the center link (or drag link) at the other end. It serves as a pivot point and helps maintain the alignment and stability of the steering linkage.
    • The primary function of the idler arm is to provide support and maintain the correct geometry of the steering linkage. It helps to keep the center link in a stable position, parallel to the drag link, and assists in transmitting the steering input from the pitman arm to the steering linkage. This allows for controlled and smooth steering operation.
    彩盒 1

    GDST is a leading suspension and steering parts manufacturer that specializes in producing high-quality components for various automotive applications. With a strong reputation in the industry, GDST has established itself as a reliable and innovative provider of suspension and steering solutions.

    GDST’s product range includes a wide range of suspension and steering parts, catering to different vehicle types and models. These components encompass ball joints, tie rod ends, stabilizer links, bushings, strut mounts, shock absorbers, control arms and more. Each part undergoes rigorous testing and validation to guarantee its reliability, durability, and compatibility with various vehicles.
